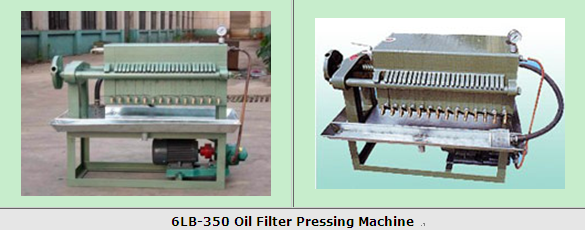

Oil filter pressing machine is widely used for separating solids and liquids in industries such as food, environmental protection, pharmaceuticals, chemicals, metallurgy, and oil, etc. It is particularly used as an oil purifier in the oil processing plants for edible oil and vegetable oils.
This oil filter pressing machine is especially suitable to filter crude oil and refined oil. It can also be used to filter bleaching oil in the oil refining plants. This machine also clears waste water and waste cooking oil. It uses a fine-mesh filtering cloth, which is particularly useful in bio-diesel oil refinement.
The filtrating cloth between the filter plate forms many small rooms. Under high pressure, the oil goes through the filtrating cloth, and leaves from the faucet beneath the filtrating cloth. The plate oil filter pressing machine meets the requirements of the IB/T 4333-1997 the pressure oil-filter in compartmental and plate type.
Technical Parameter
|
Model |
No.of filter plates |
Dimension of filter plate |
Working pressure |
Productivity |
Power |
Dimension |
Weight |
|
YLY-250 |
13pcs |
250*250mm |
0.3-0.4MPa |
100kg/h |
0.75kw |
780*530*670mm |
155kg |
|
YLY-350 |
25pcs |
350*350mm |
0.3-0.4MPa |
200kg/h |
1.1kw |
1300*750*700mm |
470kg |
As a professional supplier, we provide our customers with a wide range of oil filter pressing machines. They all adopt the latest technology to give filtration efficiency, longer life and least maintenance. Moreover, our machines have many advantages, like: easy operation, stable technical effect, high capacity and low impurity. They are available in different sizes and capacities. Besides, they can all be customized according to your specific needs.
